Highlights:

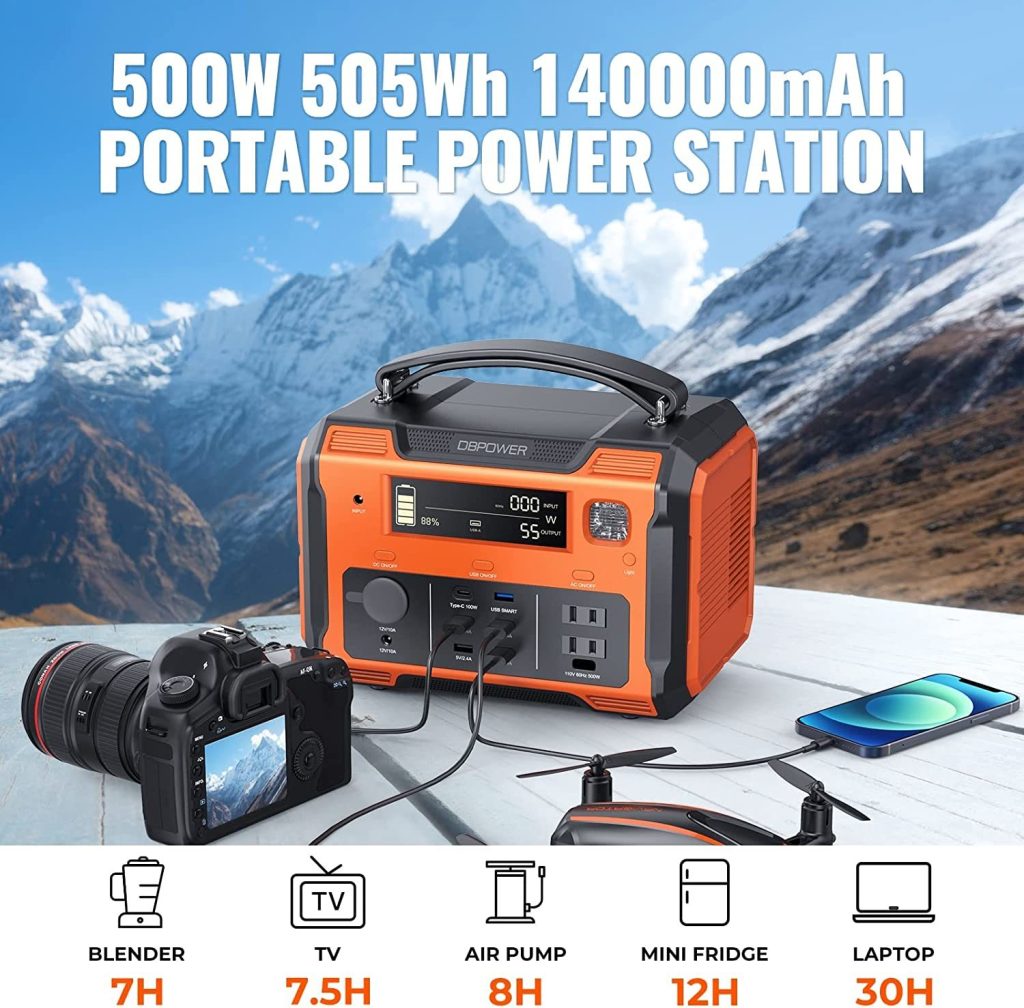

1.505Wh LARGER CAPACITY POWER SUPPLY : Our portable battery generator is equipped with a 505Wh 140000mAh lithium-ion battery pack, powerful enough to charge smartphones (2000mAh) 70 times, laptops (56W) 8.5 times, mini fridge(45W) about 10-18 hours, CAPA (15W) about 29 hours.

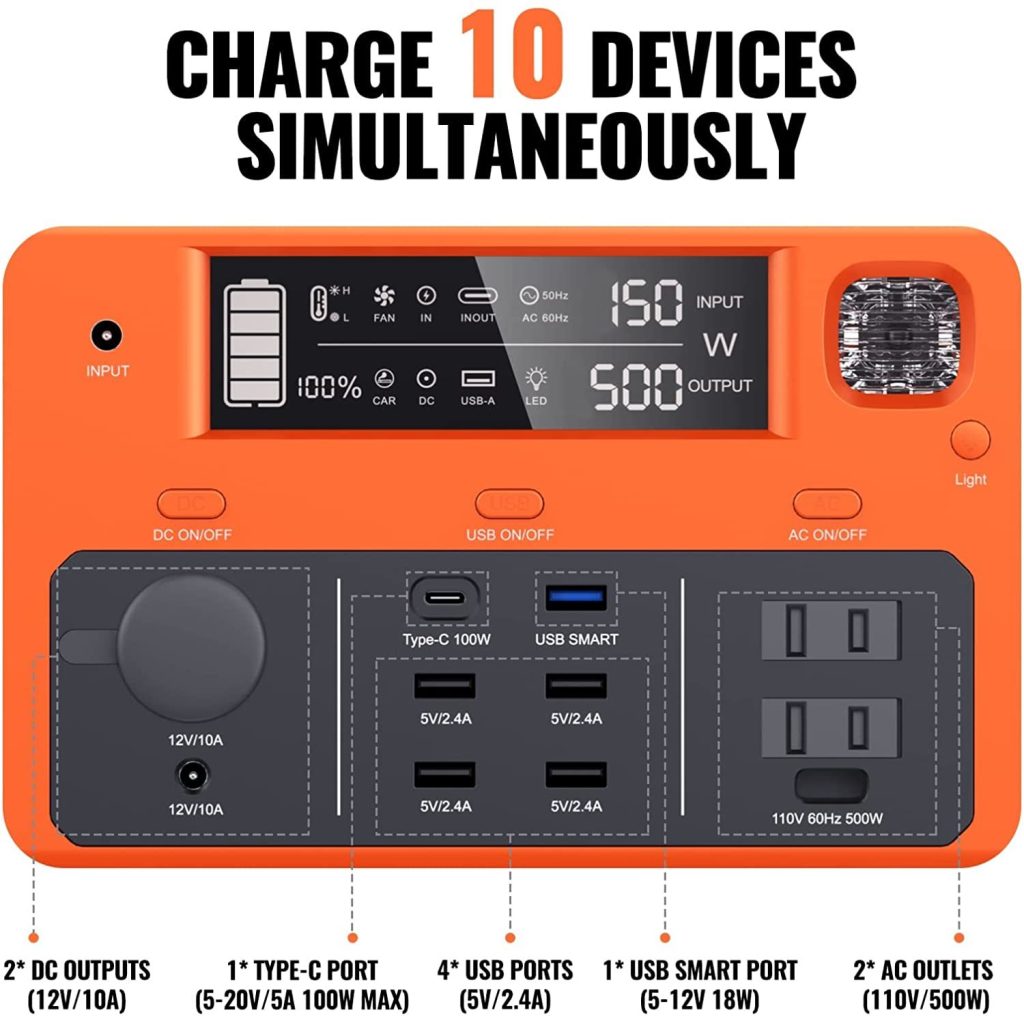

2.POWERING UP TO 10 DEVICES :DBPOWER 500W portable power station features with 10 AC/DC/USB outputs: 2* AC outlets (1000W peak power, 110V/60Hz pure sine wave), 2* DC outputs (12V/10A), 4* USB ports (5V/2.4A), 1* USB Smart port (5-12V 18W fast charging), 1* Type-C port (5-20V/5A 100W Max).
3.3 CHARGE & LIGHT MODES :You can charge the power station by solar panel, wall outlet and car outlet: 1) be recharged from the sun with any compatible 60W, 100W or 120W solar panel (NOT INCLUDED); 2) Use the AC Adaper to plug in the wall outlet for charging; 3) Plug in the car outlet for charging.
4.SAFE AND RELIABLE:Our backup battery power supply use BMS, gain international FCC, ROHS, CE, PSE safety certification. Can improve battery utilization, extend battery life through short protection, overcurrent protection, overvoltage protection, overload protection, and overheating protection.

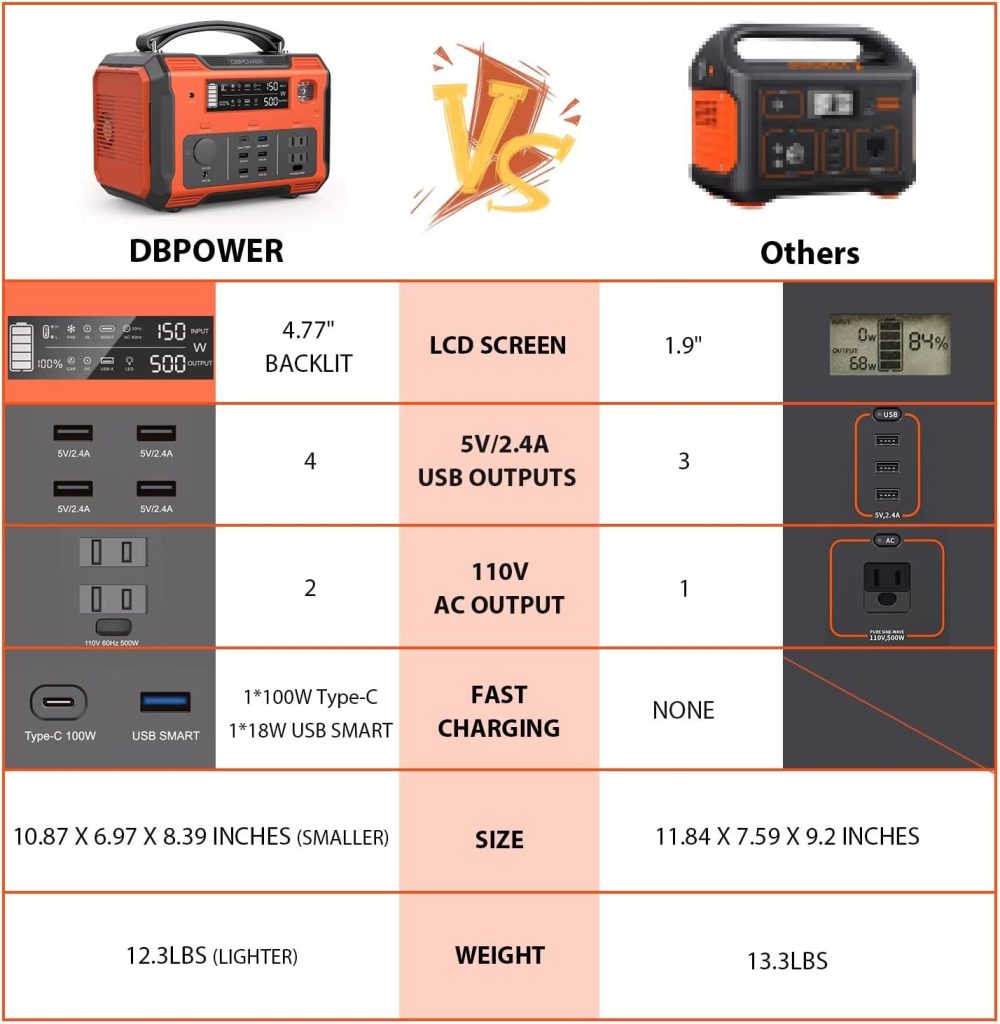

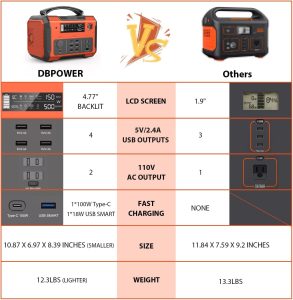

5.This is easy to carry with its solid & soft handle, the dimensions is only 10.87x6.97x8.39 inches and weight is 12.33 lbs. WHAT YOU GET: 1* DBPOWER Portable Power Station (505Wh Power Station), 1*home charger, 1* car charger, 1* user manual, 1* DC5521→6530 plugs converter.

Specification:
Wattage: 500 watts;
Voltage: 110 Volts (AC);
Frequency: 60 Hz;
Feature: Portable, Quiet;
AC Port: 110V/60Hz pure sine wave;
Rated Output Power: 500W (1000W peak power);
Rated Capacity: 505Wh;
Rated Voltage: 21.6V;
Type-C Port: 5-20V/5.0A, 100W MAX fast charging, according to PD3.0 proto;
USB SMART Port: 5.0-12.0V, 18W fast charging;
Battery pack maintenance: Recharge it once every 3 months;
Style: Portable Power Station;
Material: ABS;
Power Source: Battery-Powered;

Details:

OUTPUT PARAMETERS

AC port: 110V/60Hz pure sine wave

USB smart port: 18W fast charging, output voltage 5.0-12.0V

Type-C port: 100W fast charging, 5-20V/5.0A, according to PD3.0 protocol

USB port: 5V/2.4A, single port rated 2.4A, 4 USB ports total maximum output current is 6A

DC port&Cigarette port: 12V/10A

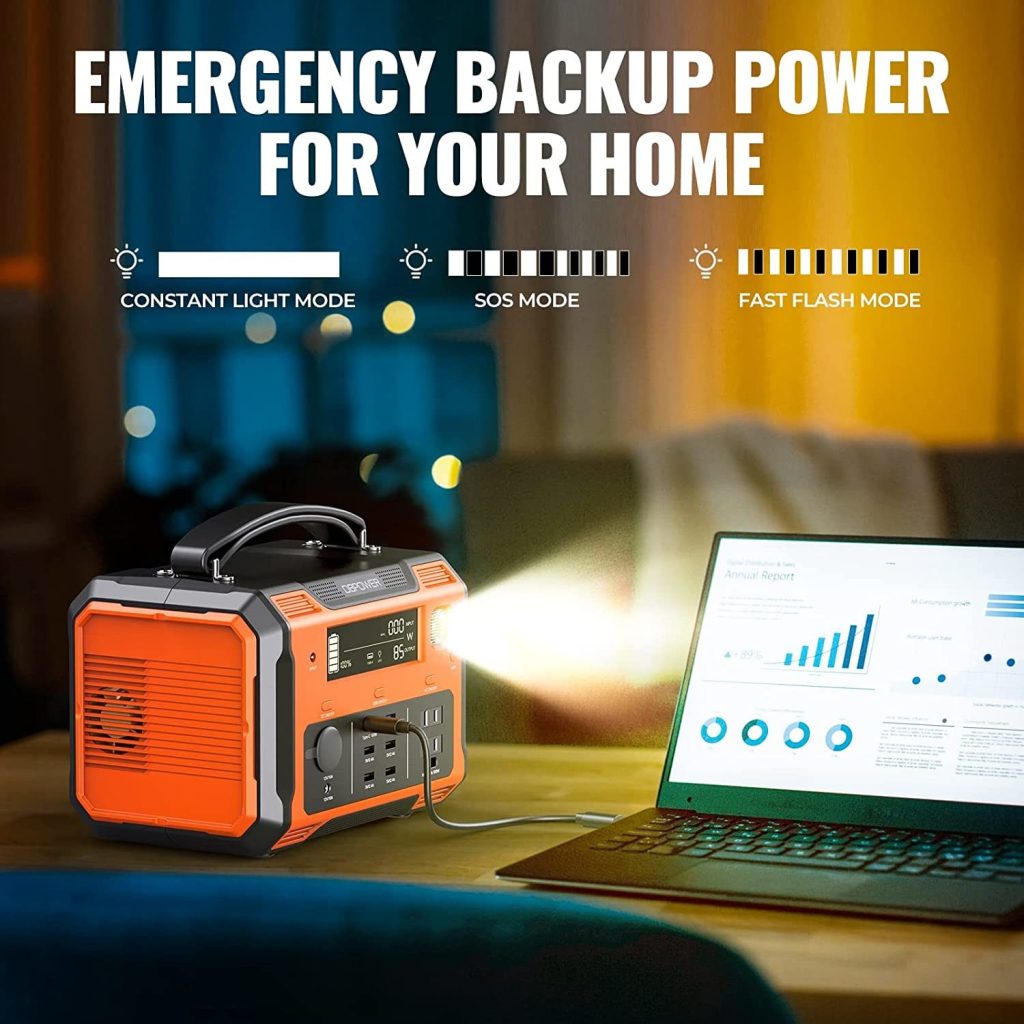

3 MODES LED FLASHLIGHT

Short press the LED Flashlight button to activate the LED light normal mode.

Click the LED Flashlight button again to switch the mode: Constant Light Mode→SOS (internationally recognized Morse code Rescue signal) mode→Fast Flash Mode→Tum off the LED Flashlight.

Press and hold the LED Flashlight button to deactivate any LED light mode.

NOTE:

Do not shine the flashlight into human eyes to avoid injury, damage to eyes.

INTPUT PARAMETERS

Charging input: 12-30V 150W MAX

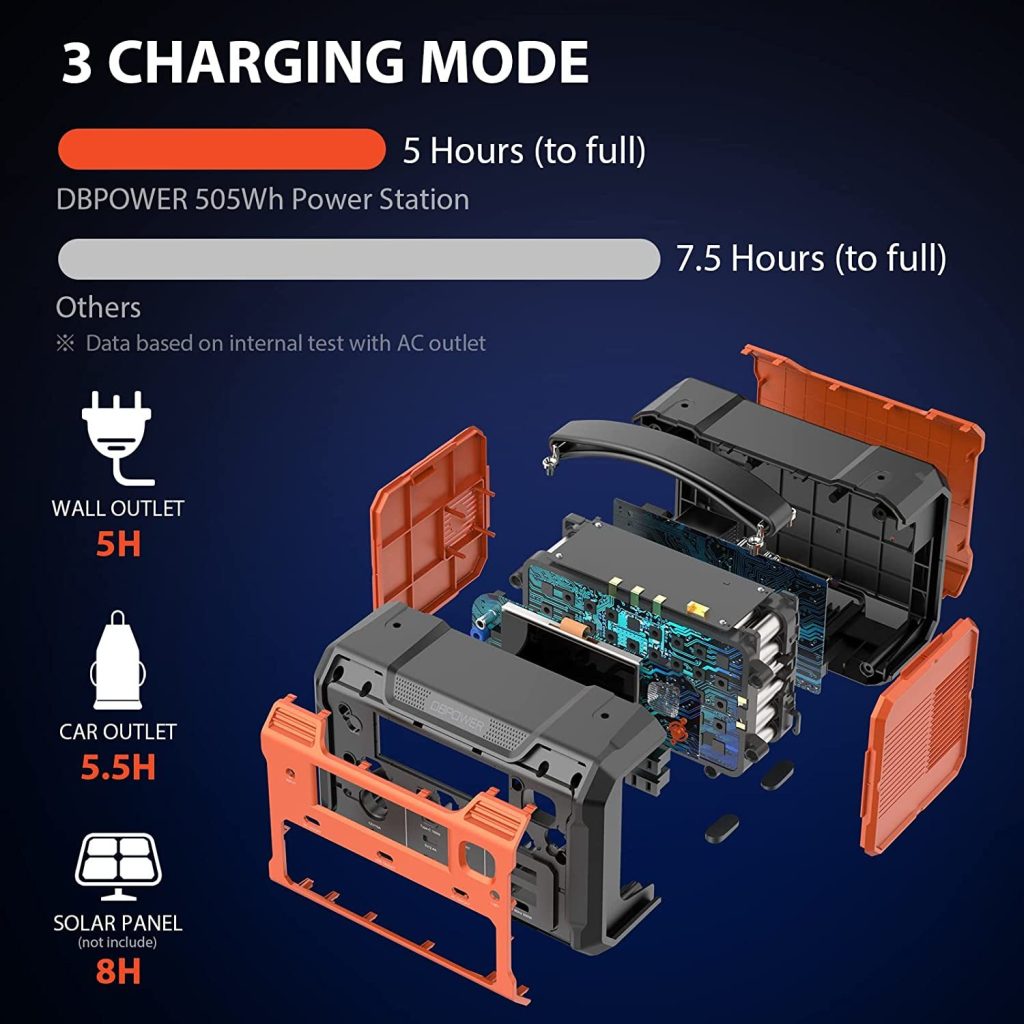

Support 3 charging modes: wall charging, car charging and solar panel charging.

Wall charging: within 150W, the charging time is about 5 hours.

Car charging: suggest 60W, the charging time is about 10 hours. If your car's output power can reach 120W, it will be fully charged in 5.5 hours.

Solar panel charging: suggest 100W, the charging time is about 7.5 hours. The maximum power of the solar panel is within 150W 30V, the charging time depends on the power of the solar panels and the intensity of sunlight.

WHAT YOU GET

500W Portable power station

1 * Home charger

1 * Car charger

1 * User manual

1 * DC5521→6530 plugs converter

Q&A:
Q1: What devices can DBPOWER 500W 505Wh portable power station power?

A: Please note that the AC output port can only charge/power devices that operate at less than total 500 Watt.

Q2: How to know the working times for my device?Why does the duration of some devices deviate from the actual usage data?

A: Working time = 518Wh* 0.85 / operating power of your device.The duration of our equipment is based on laboratory data, and the duration of specific equipment usage may vary.

Q3: How long does it take to full charge this power station?

A: About 5 hours from an AC wall outlet. Also another two recharge backup choices for your convenience, recharge from car port around 10 hours, and around within 7.5 hours from 100W solar panel (Not Included).

Q4: Does DBPOWER 500W portable power station include a built-in MPPT controller?

A: Yes, DBPOWER 500W power station has a built-in MPPT controller.

Q5: How do I find the right adapter connector for my solar panel?

A:Our DC input diameter is 65mm*30mm, you need to know what the diameter of your solar panel output cable, and then find the adapter converter between them. If your solar panel output is 55mm*21mm, you can directly use the accessory DC5521→6530 adapter converter that we provided in the pagkage.

Q6: How to turn off the portable power station quickly?

A:You can long press any two buttons (AC/DC/USB/Light Button) for more than 1S to trun off the power station.

Note: This function is invalid when DC is charging.
